Automotive and Signal Lighting

GonioSPECTROMETERS FOR automotive and transportation lighting

Specific photometric tests and measurements are required by automotive and transportation lighting standards including Rail, Aviation and Marine lighting. Viso Systems offers instruments and special dedicated software for a full characterization of light intensity distribution, flicker and colorimetry.

No matter which fundamental goniometer movement setup that is used (Type A, type B, type C), the test result consists of discrete measurement points in specific light directions. Viso BaseSpion and LabSpion can be programmed to measure in any global direction just like a robot and fulfil e.g. type B requirements.

This special “table measurement” feature allows you to set up your own measurement protocols and reports.

Rear lamp

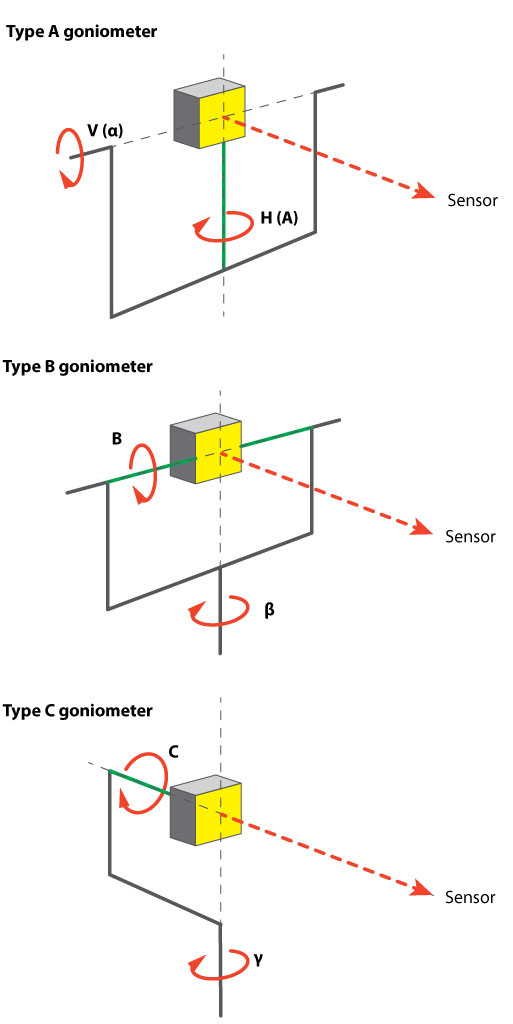

Goniometer Type A B C

Why get your own lab?

  • Having your own lab pays off. Our clients generally claim that pay-back time is 6-12 months depending on external laboratory costs
  • Your internal R&D will perform much faster and gain competencies. Better optical solutions and faster time-to-market
  • Build trust in your products and brand and strengthen your client relations by having lots of data ready

Your business

Aviation lighting

Signal lighting

Automotive lighting

Marine lighting

Strobe lights

VISO SYSTEMS FOR YOUR LAB

Maximum size: LabSpion Goniometer
Medium size: BaseSpion Goniometer
Portable: LightSpion Goniometer
See product overview

Get more information

Measurement report sample
Full product line brochure
Contact Viso sales
What other clients say

Basic outputs for automotive and signal lighting

Table measurement

Set up your own measurement tables
With the special table measurement feature you can easily set up as many custom templates as you wish. Reuse for measurements and reports incl. compliance evaluation fields.

RGB spectrum entertainment lighting

Measure everything in one go
As light is detected with a Viso fast spectrometer sensor, spectral data is recorded in every measurement. A Viso goniometer will even provide ‘color over angle’ data (not possible with an integrating sphere)

Custom pdf report

Make special PDF report designs
Design your own fully customized PDF report design using MS Word as the editor.
Extract all fundamental data in Excel and CSV formats.

Power curve from light measurement

Power characteristics
All Viso goniometers have a built-in power analyzer. The analyzer will help you to determine when light sources are stabilized. Important power data (wattage, efficacy, power factor etc.) are standard

Further outputs

Fundamental radiation data

  • Total luminous output
  • Peak Candela
  • Beam angle
  • Polar light distribution curves
  • Linear light distribution curves

Color and color deviation data

  • CCT / Correlated Color Temp. [K]
  • CRI / Color Rend. Index / Ra (1-14)
  • TM30-18 indices and graphics
  • CQS index and graphics
  • SCDM (MacAdam steps)
  • Special color plots to fit your application

Lighting design and data export

  • Isolux/iso-candela plots
  • Full raw data export to MS Excel etc.
  • Optional web-based tracking system
  • Customizable PDF reports

Power and warm-up data

  • Wattage [W] and efficacy (lm/W)
  • Current [A] and voltage [V]
  • Current and voltage THD [%]
  • Warm-up time and variation
  • Automatic stabilization

Popular additions

Add great tools to your system, capture more data and ease your work

LabFlicker

The LabFlicker instrument records all contemporary TLAs (temporal light artifacts): Flicker and stroboscopic effects including PstLM. LabFlicker connects to all Viso systems

LabTemp

Add a LabTemp 3-port temperature probe system for monitoring ambient lab temperature and 3 temperature spots

Sensor Upgrades

Upgrade your existing sensor to provide a broader measurement range (eg. UV) or a wider sensitivity ranges
