The LabSpion® is a complete light measurement solution covering all light sources from small lamps, LED chips, large panels and street lamps. The 2 axis goniometer enables the system to measure the full 3D distribution field of any lamp giving lighting professionals comprehensive LDT and IES simulation files.

Using a spectrometer sensor and a built-in power analyzer, the unique Viso technology enables fast measurements and ensures all data to be measured quickly, making other equipment such as integration spheres redundant.

There is a wide variety of light sources that the LabSpion is measuring ranging from outdoor lights to automotive fixtures and LED displays. The fixture is easily mounted and firmly clenched to the lamp holder, so the rotation of the lamp is quick and silent. Most importantly, the size of the lighting fixture doesn’t exceed 25 kg and its dimensions fit in within the frame – at most 1.5 m in diameter.

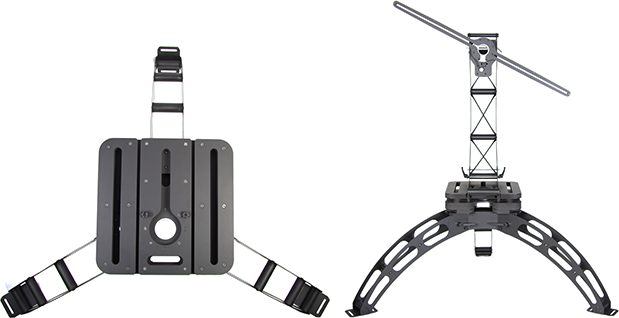

Photo-goniometer-front-top

The installation process is very simple, too. At first, the base of the LabSpion is placed on a steady surface, preferably in a dark room. The goniometer arms are then mounted to the base, so the system is ready for full operation within 20 minutes. To obtain accurate results it is necessary to eliminate possible reflections from the experimental environment, thus placing a black backdrop behind the system is advised.

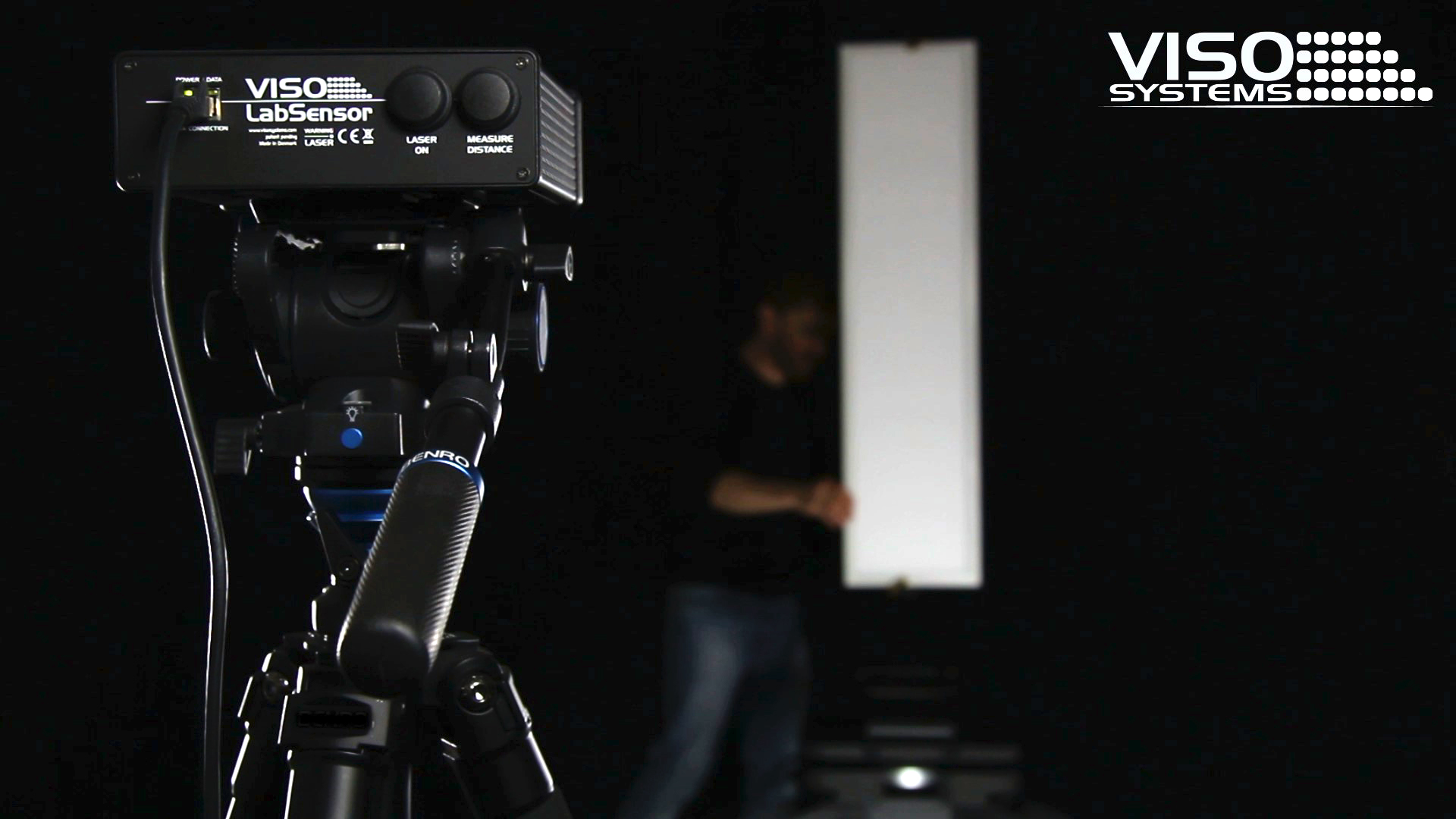

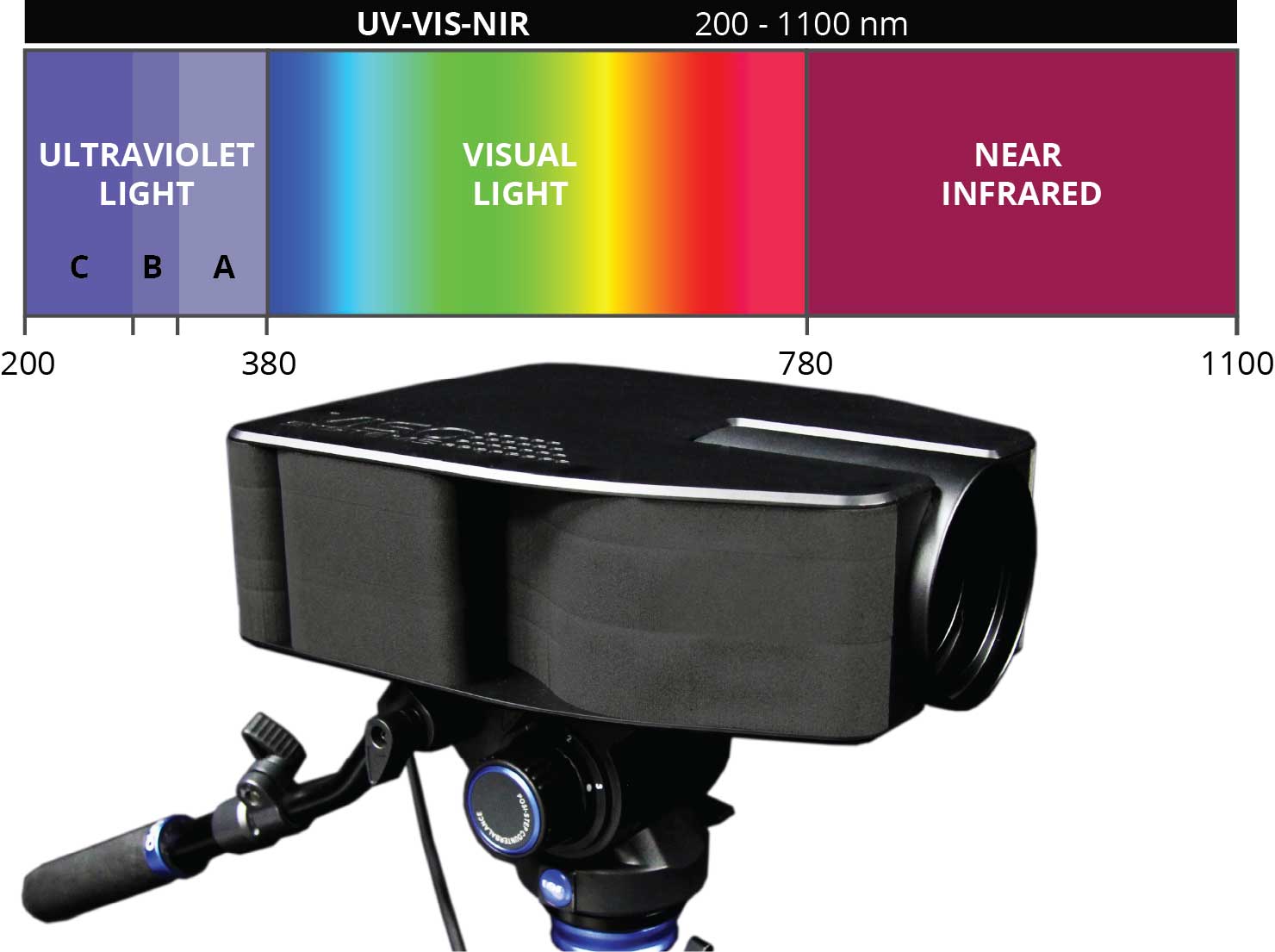

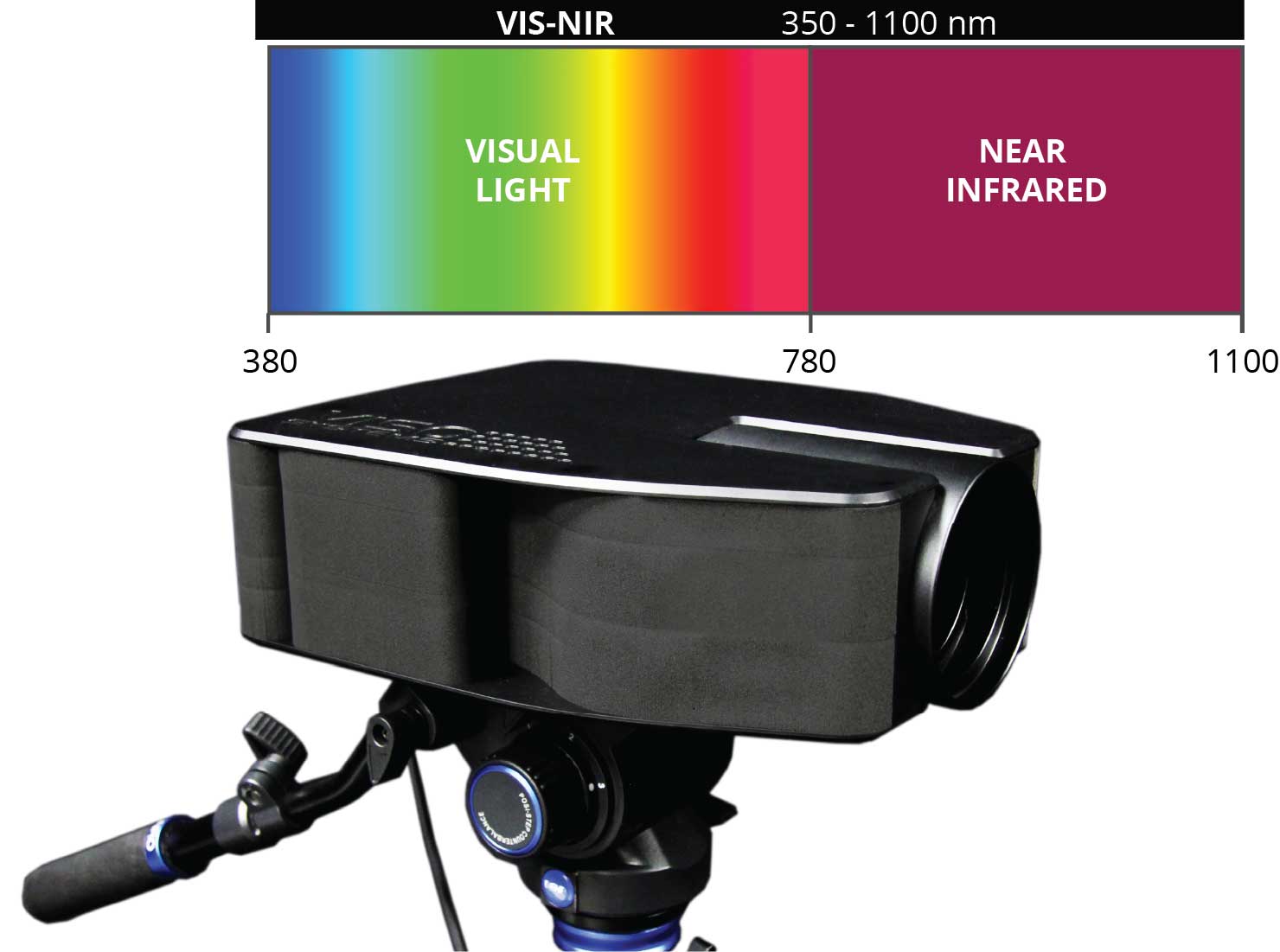

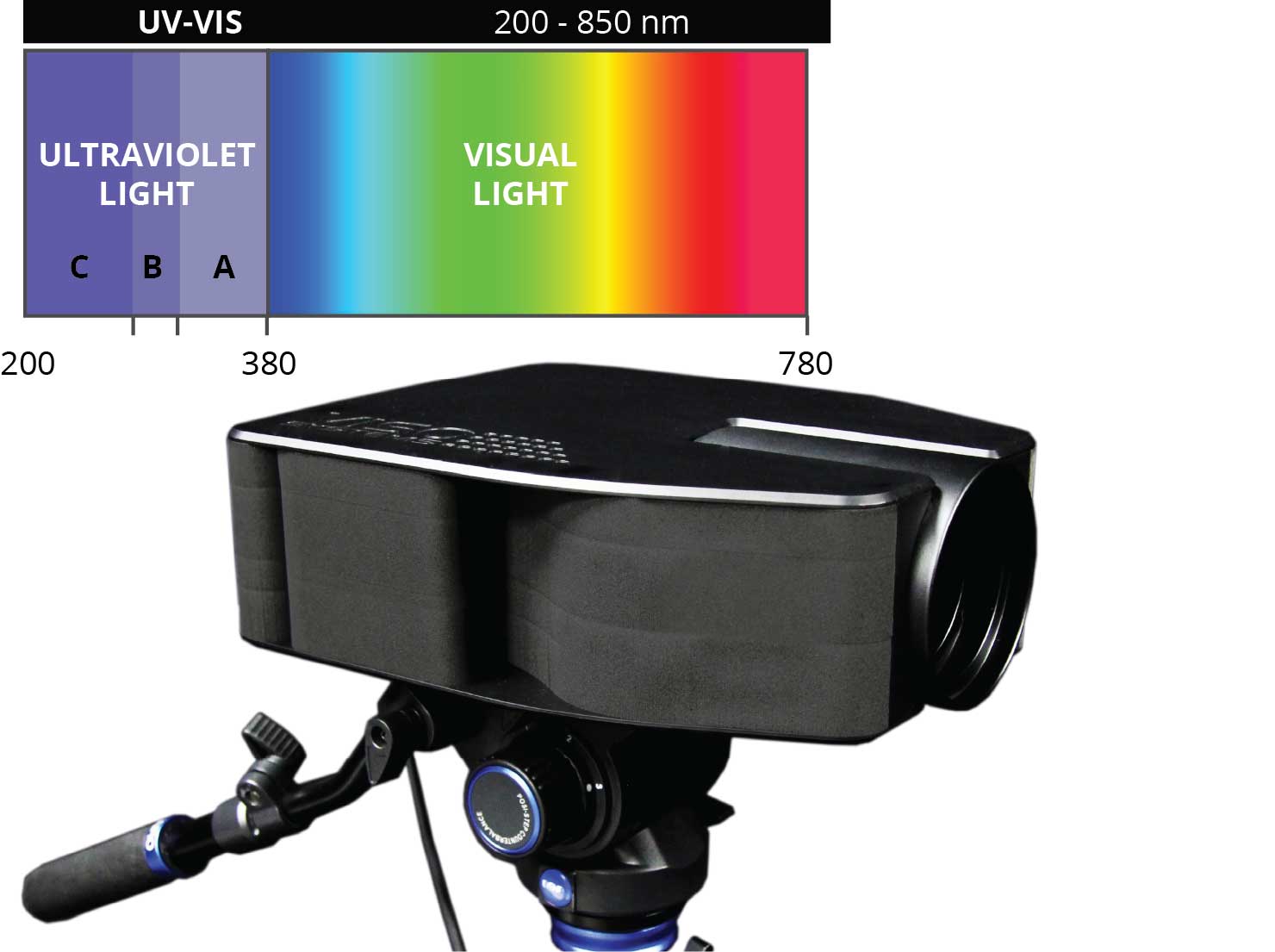

The spectrometer sensor is easily mounted on a tripod and is placed at a distance, which is calculated in accordance with the size of the measured lighting fixture. The inbuilt laser detects the distance between the two parts, so the alignment is quick and precise.

Light-goniometer-easy-connect

The LabSpion system is then ready for measurement. Connect your laptop through the USB-port with the base, install the Viso Light Inspector software and start operation. The process is entirely automatic, yet there is an option of a manual operation. Data acquisition from a single C-plane takes 30 seconds, which yields roughly 15 minutes for the entire collection of planes.

light-measurement-system-labspion-exhibition

Measurement data is then automatically saved in a specific folder in the form of fixture files. They are usually exported into PDF, PNG, IES, LDT and CSV formats to be further presented by customers in their reports.

Specifications:

  • Measurement method………………Far Field
  • Shipping weight………………………86 Kg
  • Sensor distance………………………50m to 0.5m Sensor distance >= lamp length x10
  • Sensor distance setup……………….Laser range finder (build into sensor)
  • Lamp diameter…………………………0 – 1,5m at 2 axis (1 axis upto 6m standing on base)
  • Maximum lamp weight ………………25Kg
  • Power analyzer voltage range …… 90VAC-260VAC <+/- 0.5V
  • Power analyzer current range ……0A-3A (Avg: +/- 0.5mA)
  • Power analyzer power range ………0W-600W (Avg: +/- 0.1W)
  • Lumen …………………………………typ 1 – 3,000,000 +/- 4.00%
  • Candela …………………………………typ 0.07 – 1,000,000 <+/- 2,5%
  • Colour temperature …………………1.000K-10.000K <+/- 35K
  • Colour rendering index (CRI) ………0-100 <+/- 0,7
  • Angular resolution BASIC MODE ……5 degree/step (About 20 sec measurement time per C-plane)
  • Angular resolution HIGH MODE……0.1 degree/step (About 5 min measurement time per C-plane)
  • Spectrometer type……………………Ibsen Photonics FREEDOM Custom viso (high sensitive transmission grating)

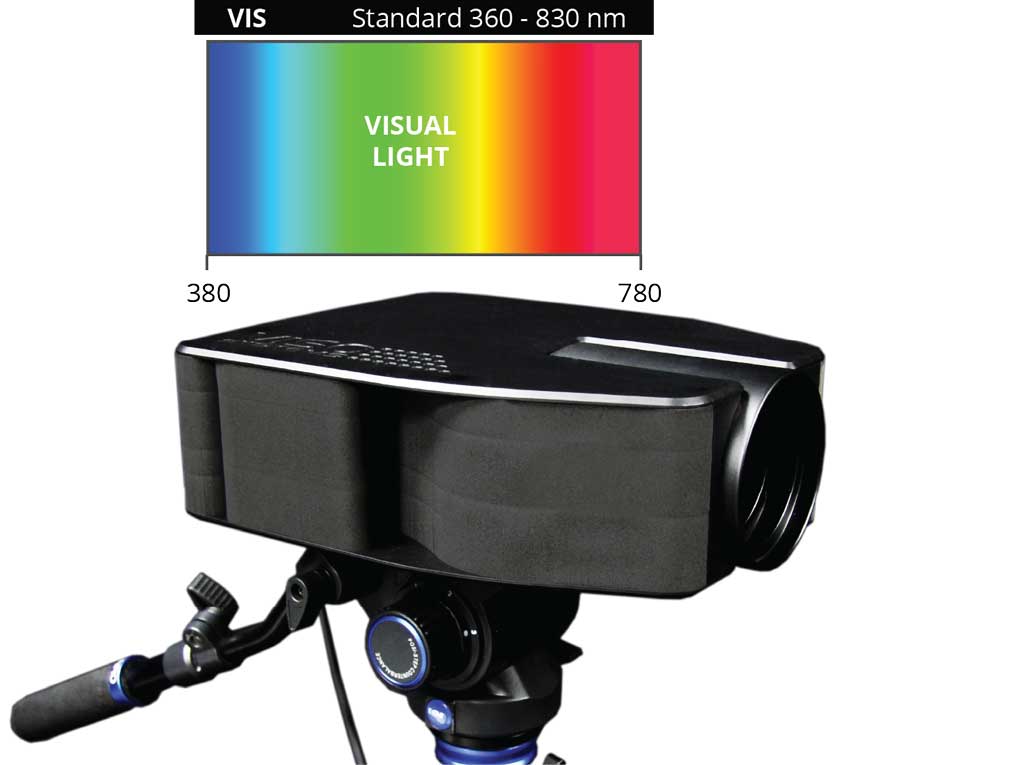

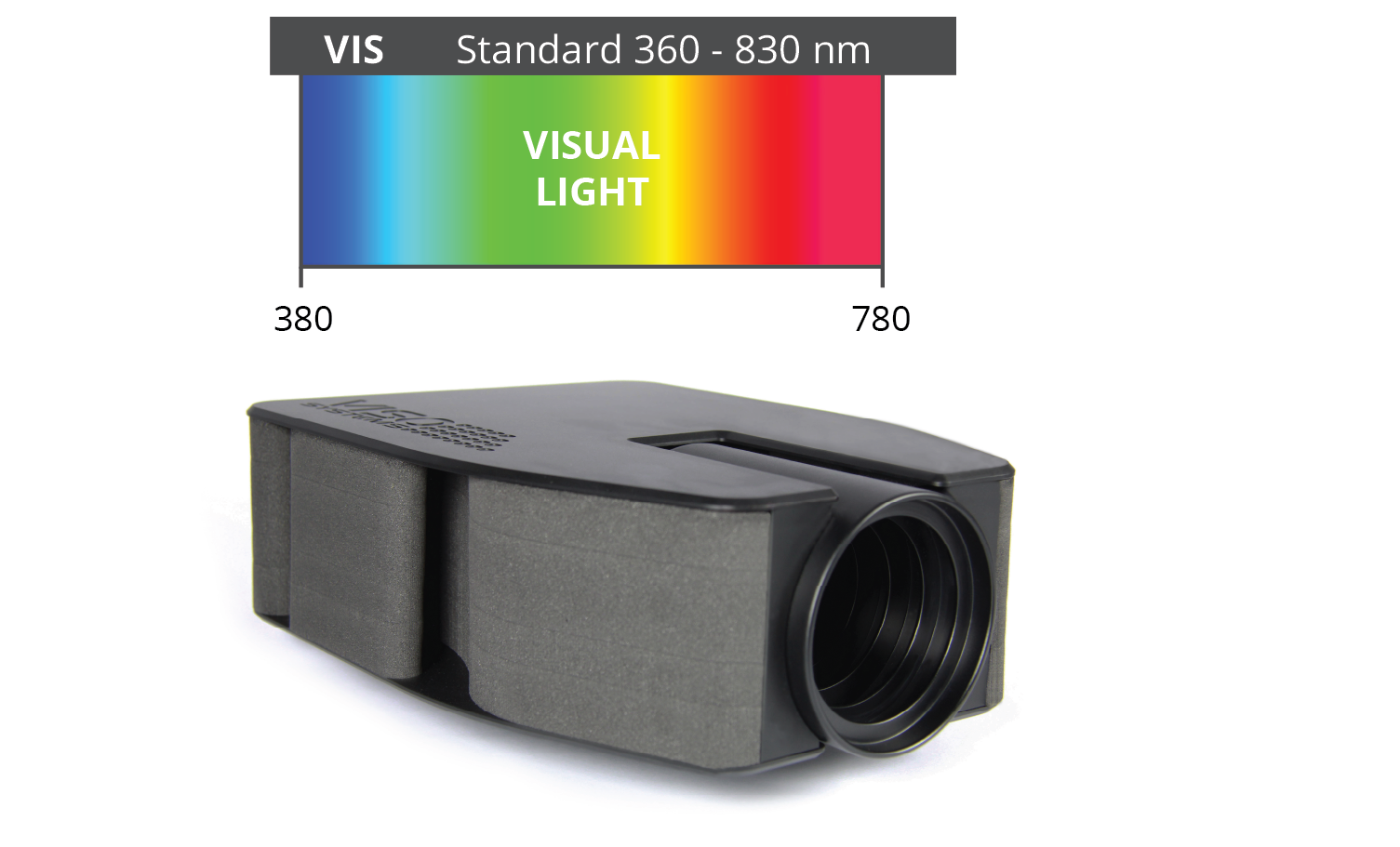

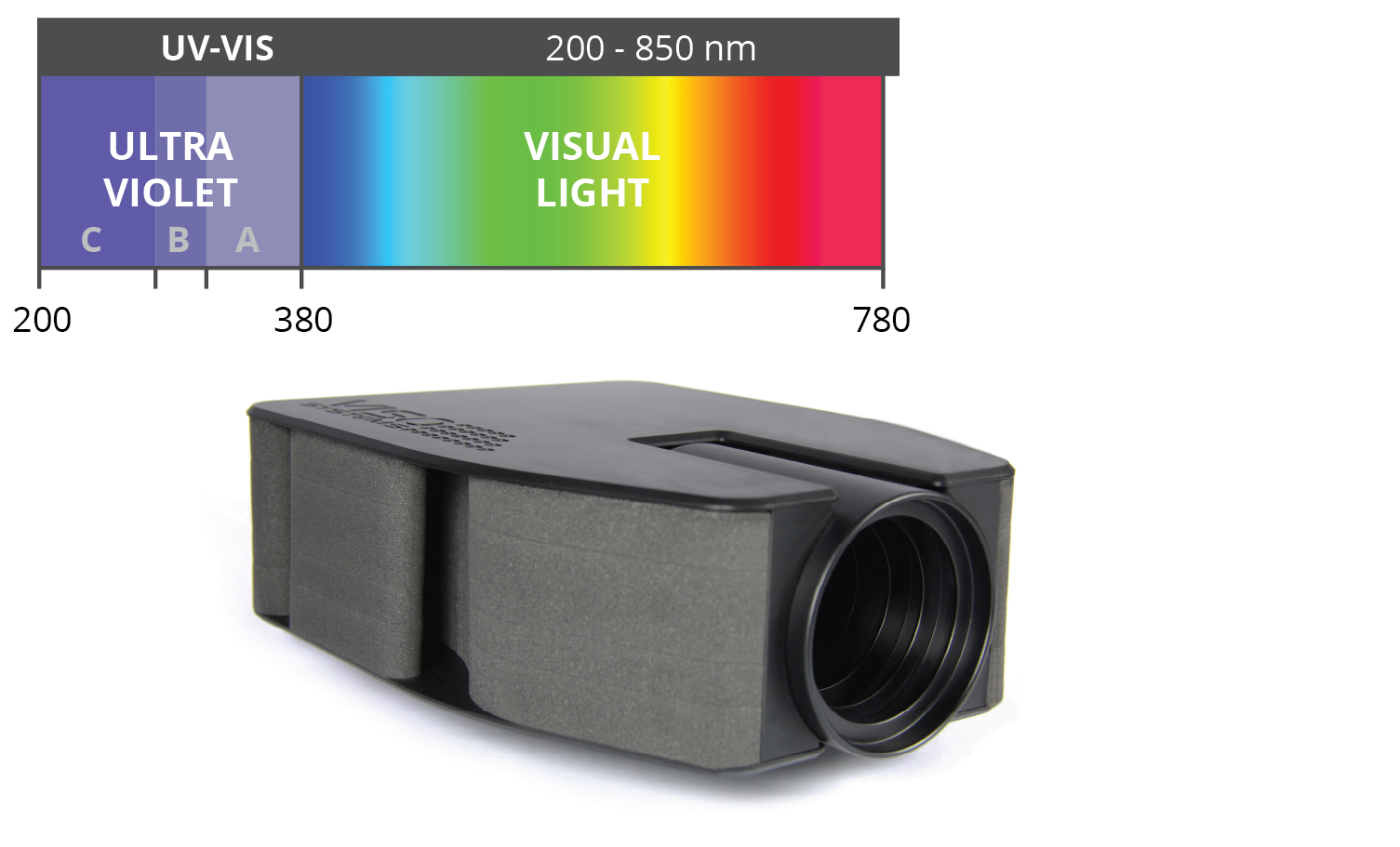

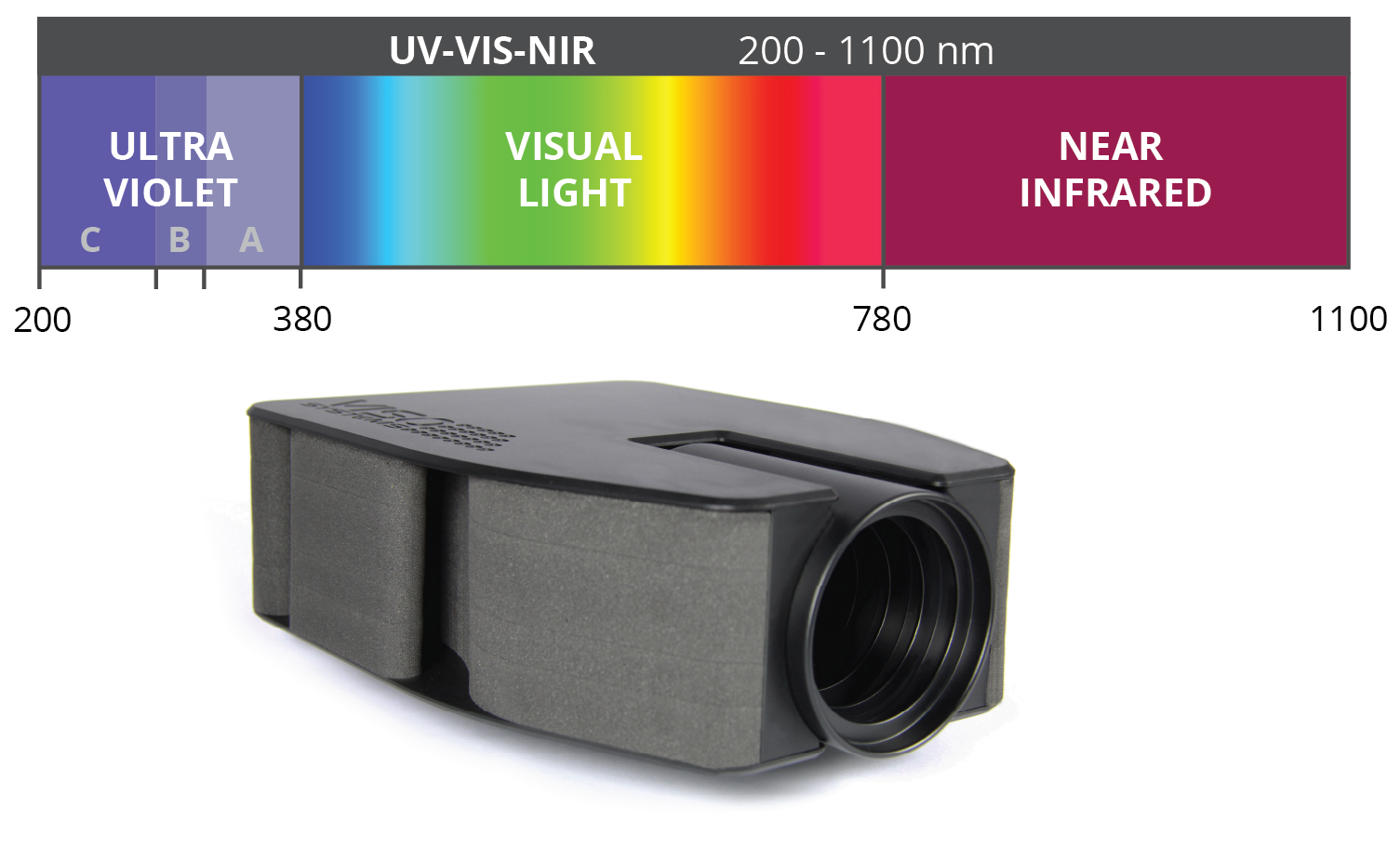

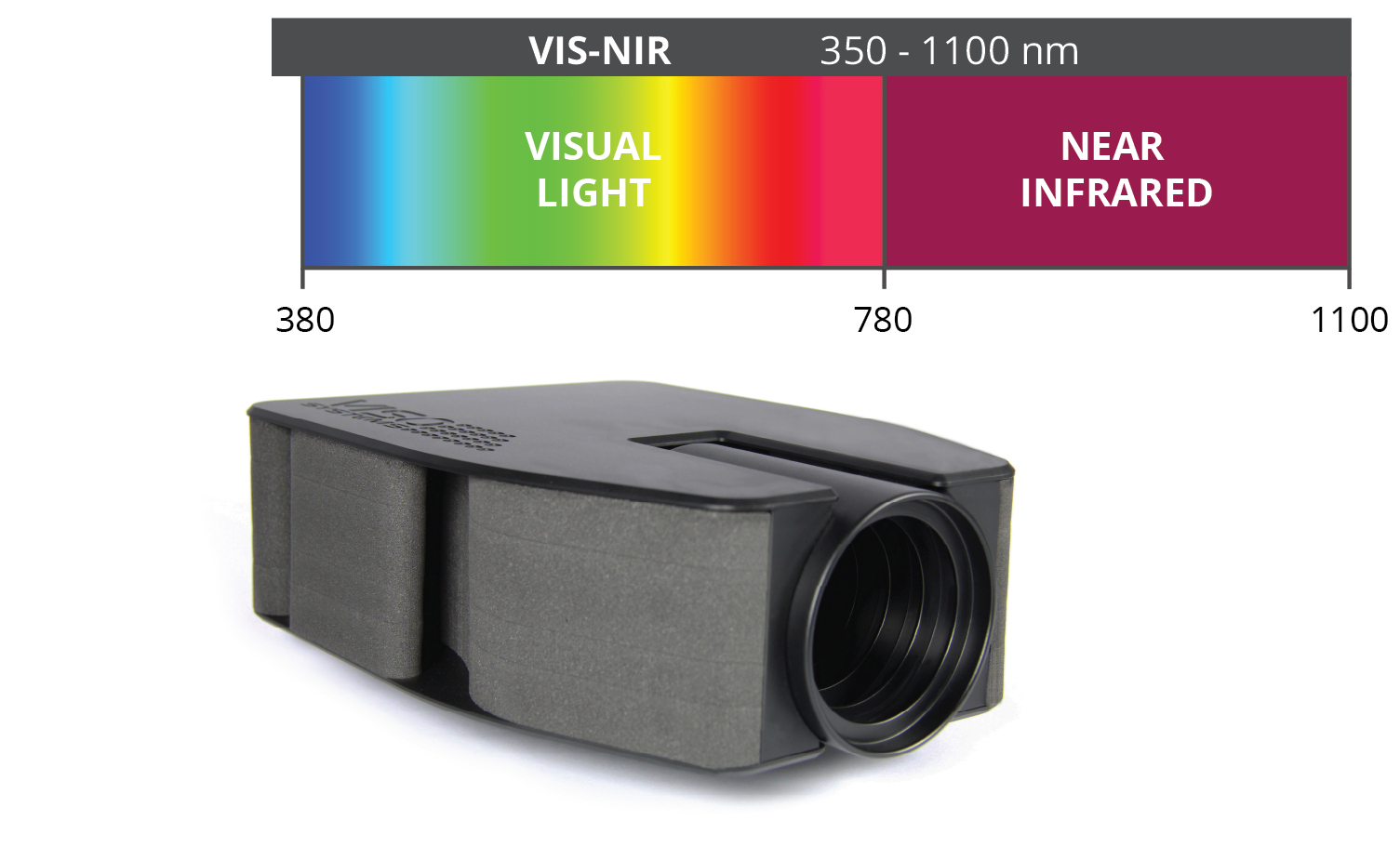

  • Spectrometer range…………………360-830nm (1024 pixels)
  • Spectrometer detector ………………SONY ILX511B
  • Calibration ……………………………Fully calibrated plug and play solution
  • Re-calibration ………………………….Every 1 year (Maximum 2 years)



No limits the C-plane goniometer gives you full 3D light distribution.

light-measurement-system-mounting

Free from complex racks, goniometer drivers, power analyser, sensor data link are all build-in, just plug in USB.

light-measurement-system-base

Main board easily slides out for service and repair, shipped anywhere quickly.

light-measurement-system-labspion-installation

Easy setup use the integrated laser to quick setup measurement distance.

light-measurement-system-laspion-laser
